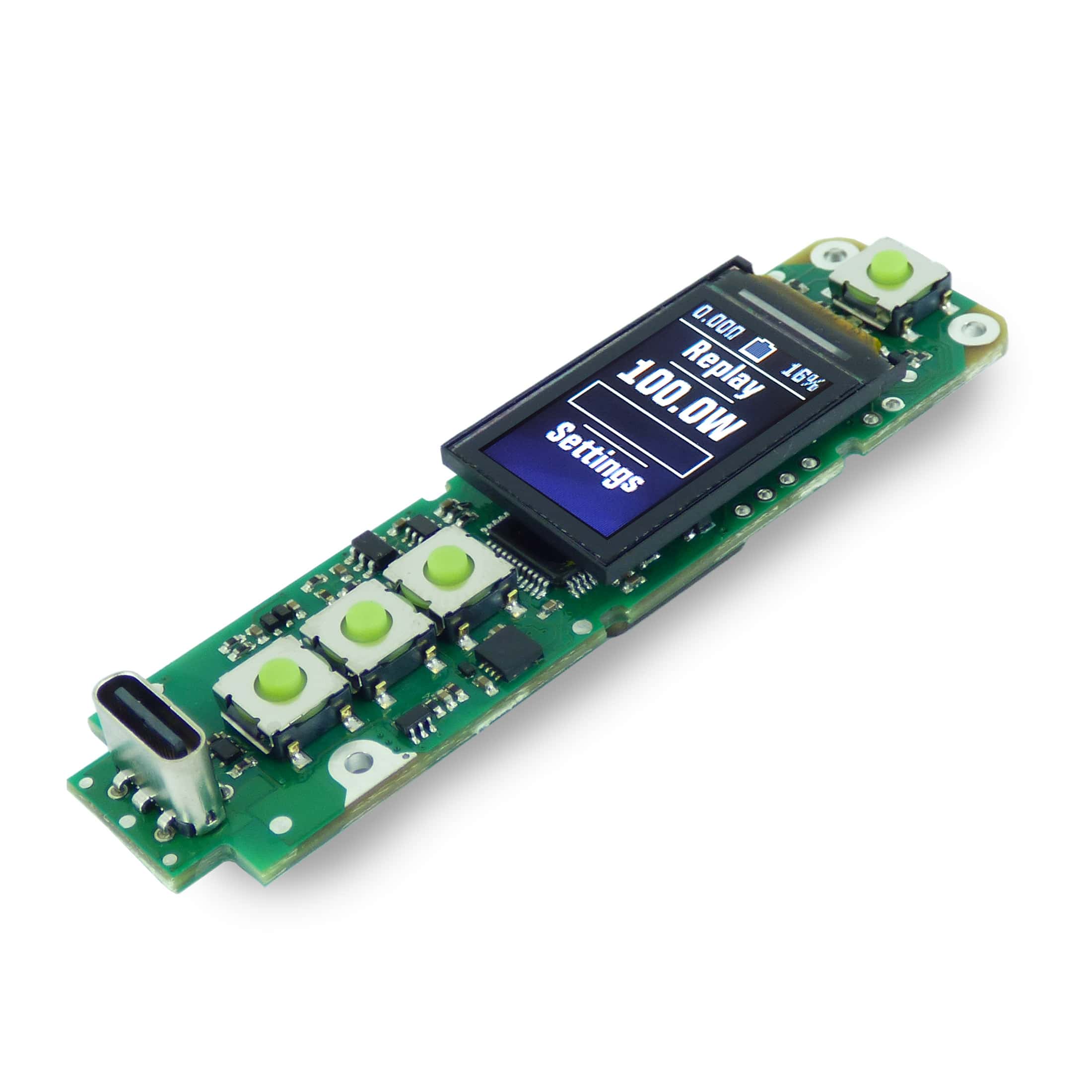

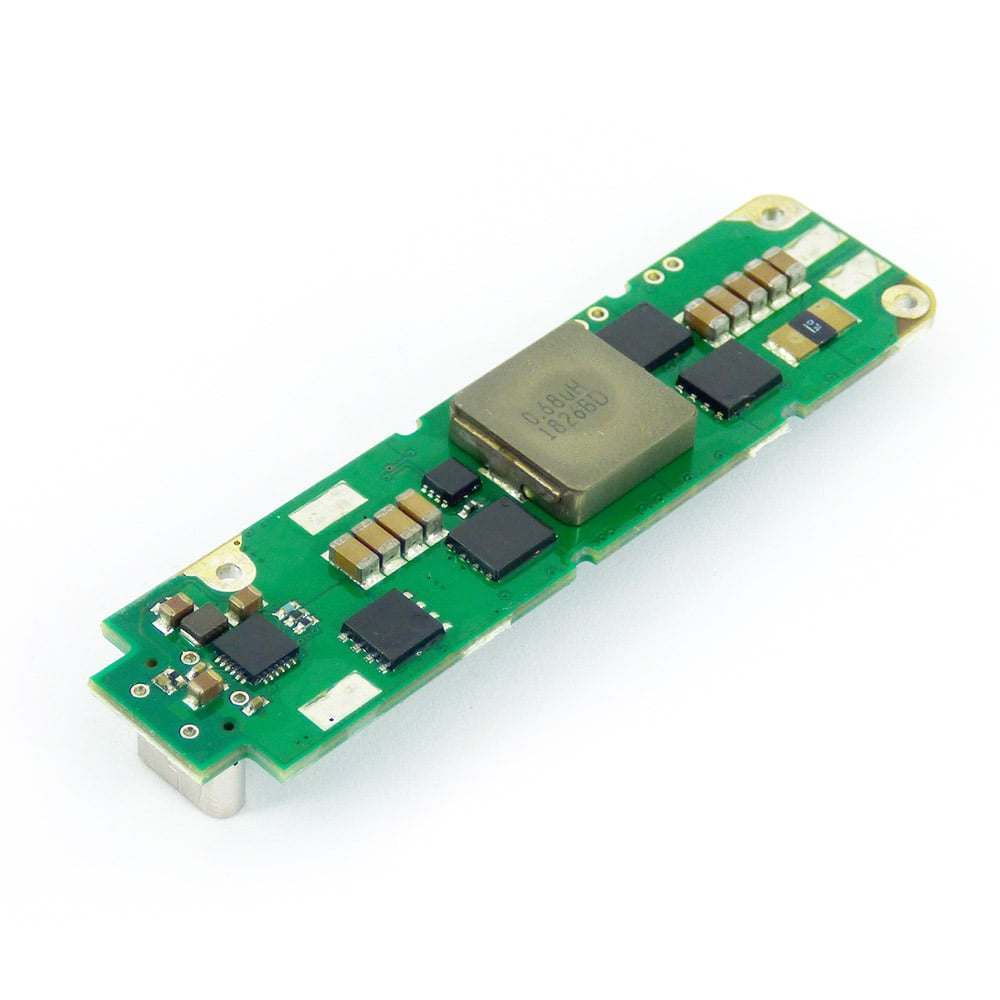

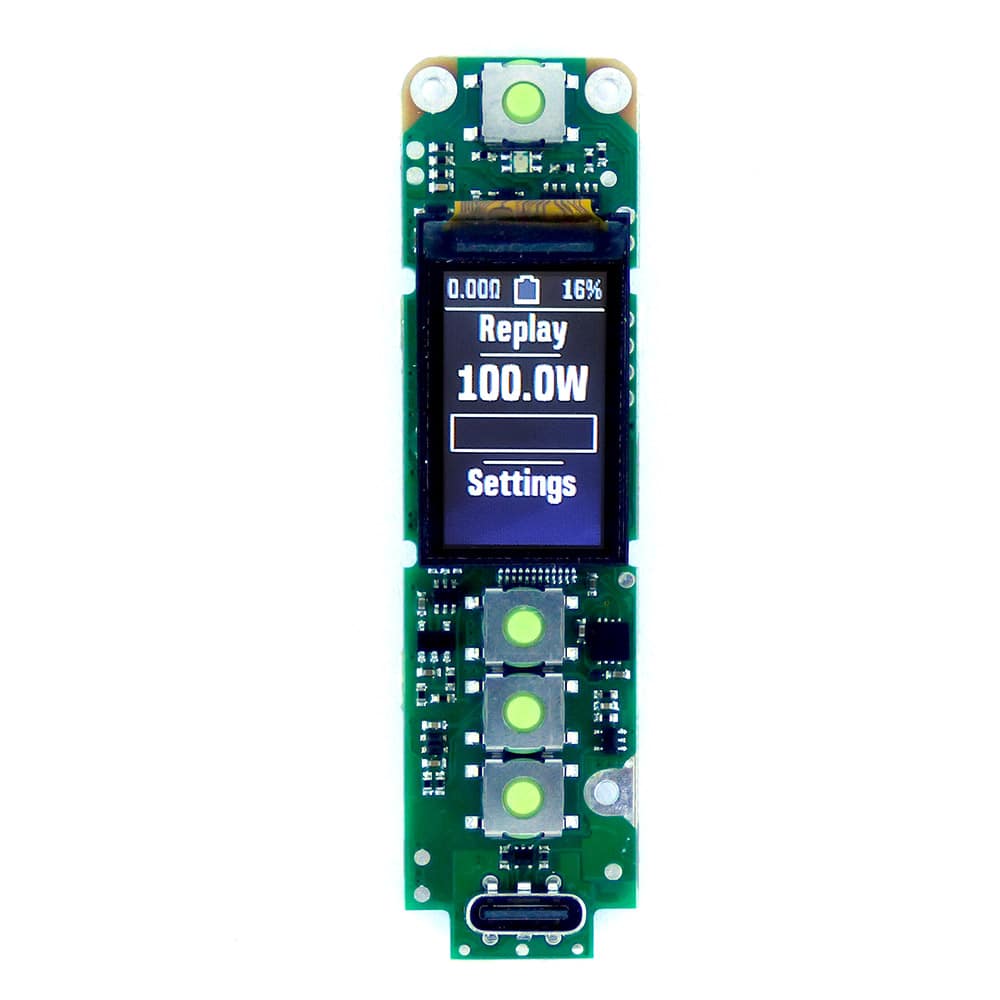

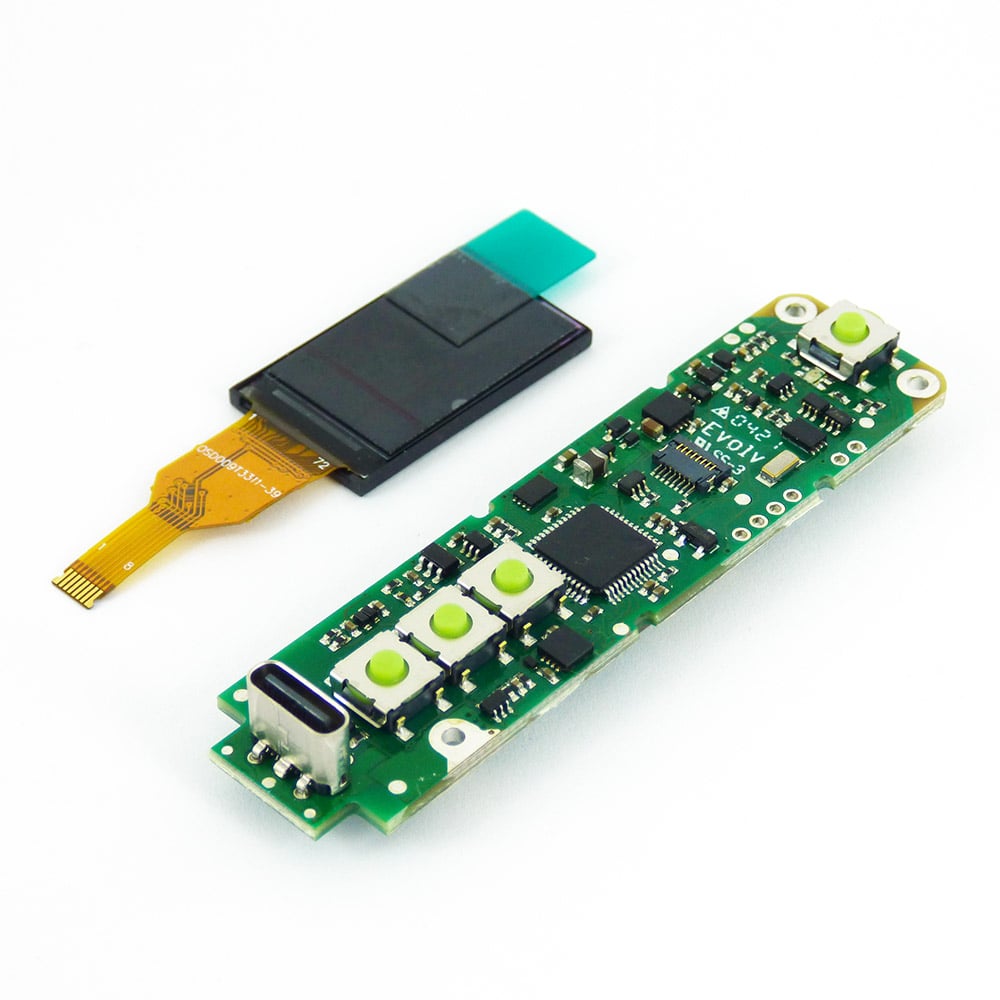

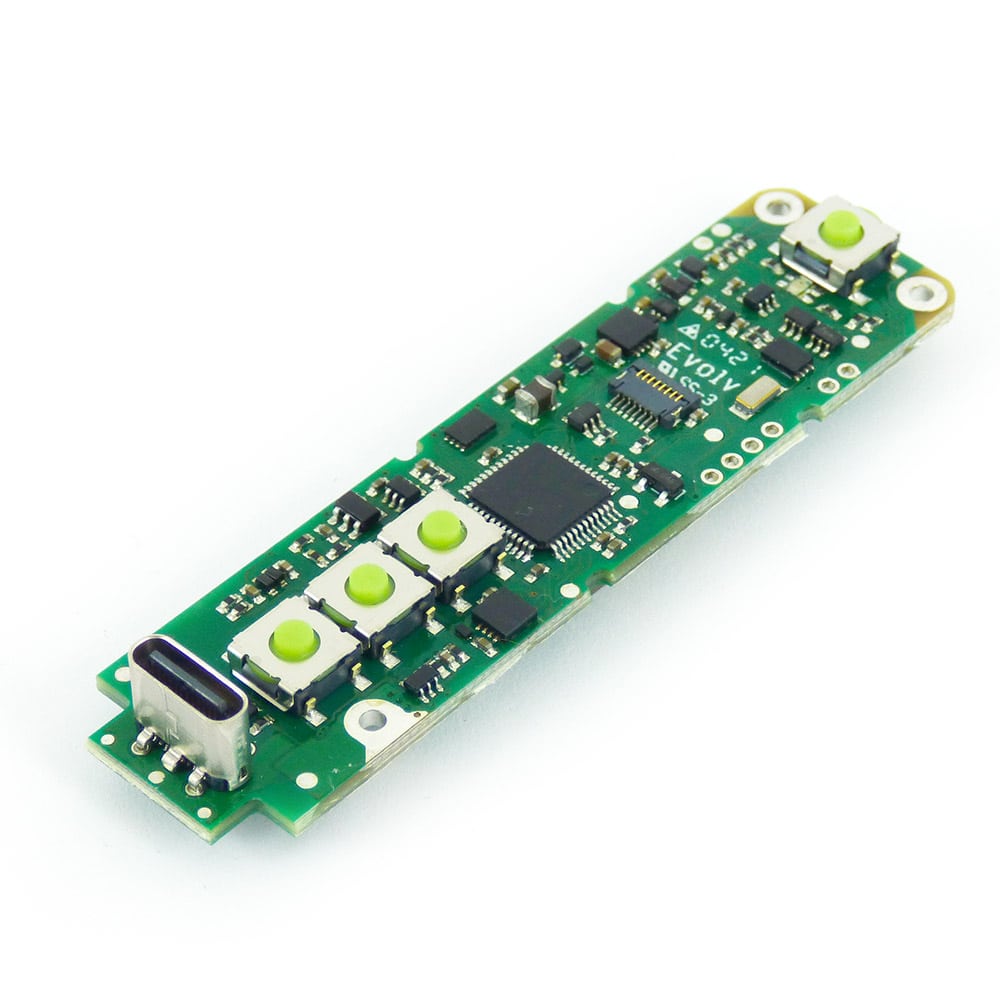

The Evolv DNA100C is a power regulated digital switch-mode DC-DC converter for box mods. The board features Evolv’s patented Wattage Control, Patent Pending Temperature Protection, Preheat, and onboard actuators. The outstanding Replay Mode feature is also included in the default theme. The DNA100c uses Synchronous Rectification for maximal battery life, efficiency and minimal heat generation. The board also features a bright 160 x 80 pixel Colour TFT Screen. The DNA 100 Colour is powered by a single lithium cell and can also be wired in parallel configuration. Up to 3a charging is supported via a USB Type C on-board connector. This board is perfect for 21700 mod builds.
The DNA 100C is user configurable and customisable using Evolv’s EScribe 2.0 and Theme Designer software available here. Designed for simplicity of use whilst allowing complete customization, the DNA100C really is vaping down to a science.
The Evolv DNA 100C deploys a 3a charge rate as default. You must ensure the cell you are charging is capable of handling this. Please contact the cell manufacturer or supplier to confirm your cell’s capability before charging at this rate. Also ensure your batteries are in good overall condition. Aged cells with a raised internal resistance will get hot. Neither Stealthvape nor Evolv will be held liable for any damages or injury resulting from improper use.
The charge rate may be altered to 1.5a in escribe.
