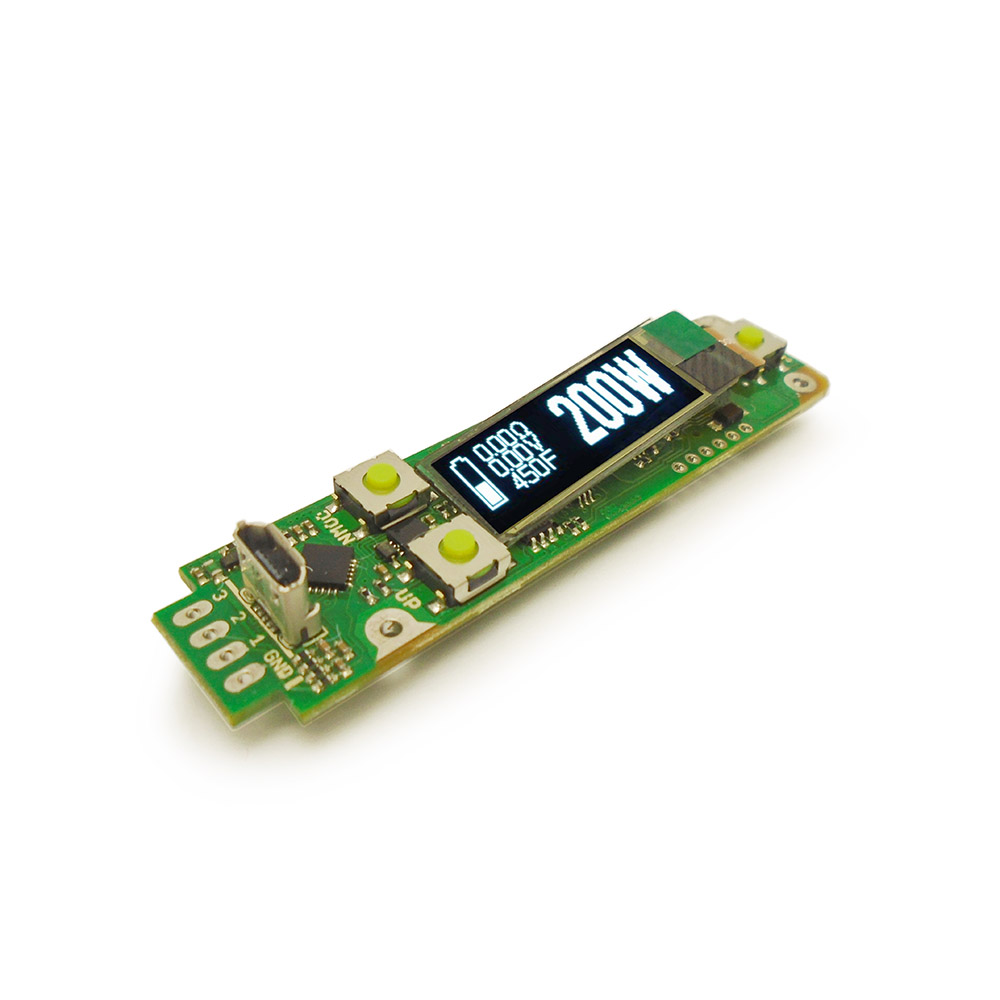

DNA 200 w/Detachable Screen

The DNA 200 is a power regulated digital switch-mode DC-DC converter for personal vaporizers. It features Evolv’s patented Wattage Control, Temperature Protection, Preheat, Digital User Controls, OLED Screen, Onboard Buttons and Synchronous Rectification for maximum battery life and minimal heat generation. The DNA 200 runs from a 2 or 3 cell lithium polymer battery, and features cell-by-cell battery monitoring and integrated balance charger. The USB port and Evolv’s EScribe software can be used to customize or monitor the user experience. It is the most advanced personal vaporizer controller ever made. The DNA 200 is vaping down to a science.

For stock alerts please follow us on Twitter @evolvapor

DNA 200 Datasheet

$80.00-DNA 200 w/Detachable Screen

$650.00-DNA 200 Modder's 10 Pack

DNA Replacement Large Screen

Need a replacement for your cracked or malfunctioning DNA screen? These 128x32 OLED screens will fit the bill.

NOTE: This screen is NOT compatible with the DNA 40.

For stock alerts please follow us on Twitter @evolvapor

DNA Large Screen Datasheet

$12.00-DNA Replacement Large Screen

FullyMax 3s 10Wh battery

The FullyMax FB900HP-3S is an 11.1V Lipo pack for use with the DNA 200 and 250. It comes with a JST-XH balance plug and 18 AWG power cables (no connector). We used this battery in the DNA 200 beta mods and it performed well.

$19.99-FullyMax FB900HP-3S




900mAh (10Wh)

FullyMax model


Dimensions (mm)

19.8 x 26 x 70

Max Cont. Discharge

30C (27.0A)

Max Burst (3 Sec.)

60C (54.0A)

EScribe Software

EScribe is a software package used to configure, monitor and modify the operation of your DNA 200. It installs on a Windows PC and connects to your DNA 200 using the USB port.

DNA 200 Technical Documentation

3d Models - DNA 200 Board

STEP Format

IGES Format

3d Models - DNA 200 Reference Case

Solidworks 2015 format

IGES format

DNA 200 Dimensioned Drawing

Front view - measured in millimeters

Side view - measured in millimeters

DNA 200 OLED Screen

Screen Dimensioned Drawing

Screen Connector Drawing

DNA 200 Documentation

DNA 200 Datasheet

DNA 200 Forum

DNA 200

The Evolv DNA forum is a place to find official technical assistance, documentation, firmware and software updates, themes, and other information about Evolv DNA devices.

Evolv DNA Forum
