Evolv Reference Mod DNA 75 Color

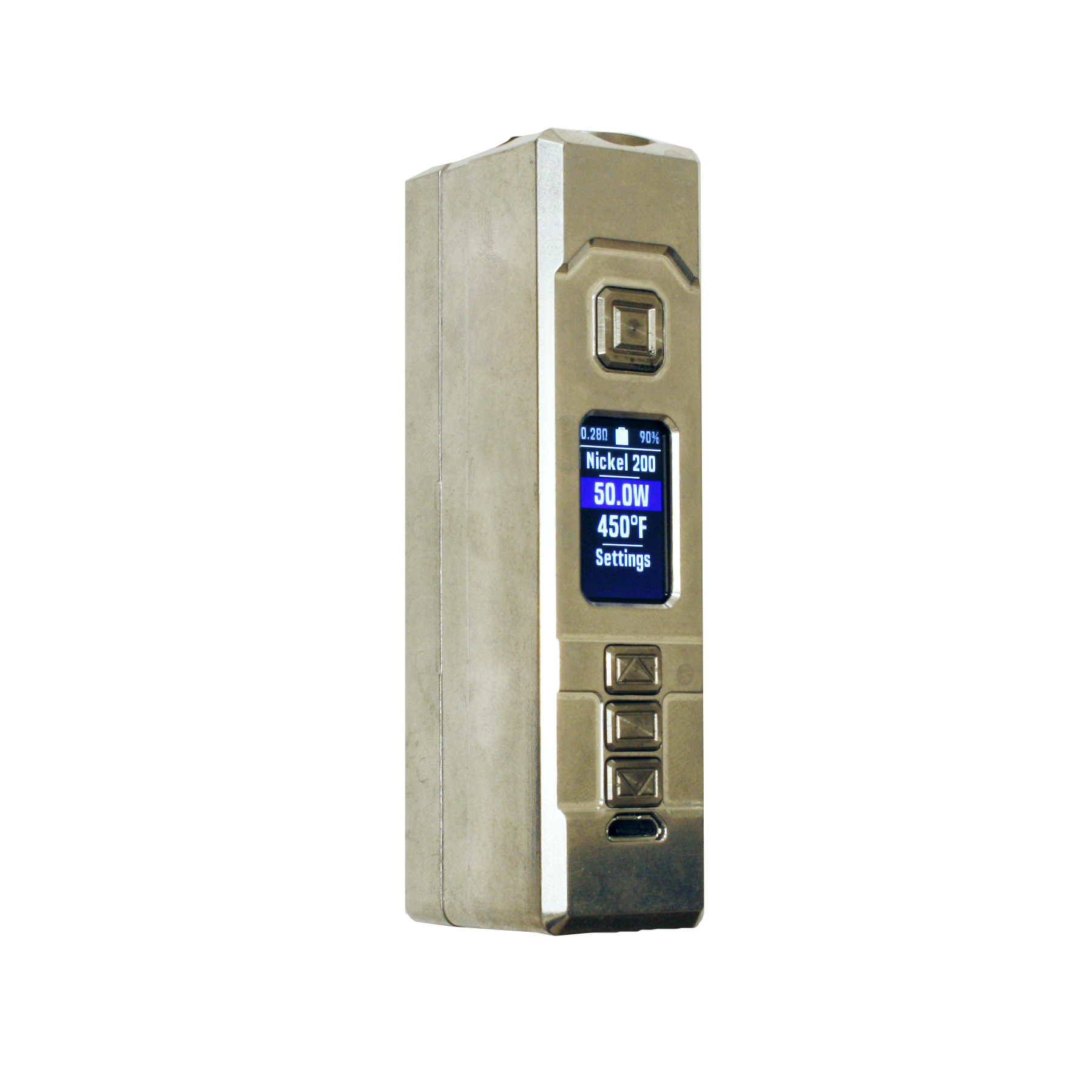

The DNA 75 Color Reference Mod is a raw aluminum CNC-milled DNA 75C Mod powered by a non-removeable 2,500 mAh 18650 battery.

Evolv’s reference mods are typically sold to research organizations, labs and universities for e-cigarette research, testing and clinical studies. We found some extras lying around and decided to offer them for sale to consumers for our March Sale.

Pros

-It is ugly (no one will accuse you of being a shallow or fancy vaper)

-Powered by a DNA 75 Color

-Replay / Temperature limiting

-Won’t get stolen if left unattended in a public place (again ugly)

-Made by Evolv in the USA

Cons

-It is ugly

-scratches easily

-Not for the fashion conscious

See below for specifications and more.

Description
Additional information

The Evolv Reference Mod DNA 75 Color contains a power regulated digital switch-mode DC-DC converter. It features Evolv’s patented Wattage Control, Patent Pending Temperature Protection, Preheat, Onboard Buttons, Synchronous Rectification for maximum battery life and minimal heat generation, and a 160 x 80 pixel Color TFT Screen. The Evolv Reference Mod DNA 75 Color runs from a single cell lithium polymer battery.

Evolv’s EScribe 2.0 and Theme Designer software can be used to make the Evolv Reference Mod DNA 75 Color look and act exactly like you want. Designed for ease of use while allowing complete customization, the DNA 75 Color is vaping down to a science.

The DNA 75C by Evolv Features:

Wattage Output Range: 1-75W
Voltage Output Range: 0.2-9V
Temperature Range: 200-600°F / 93 – 315°C
Replay / Temperature Control supports Ni200 Nickel, Titanium, and Stainless Steel. Custom wire specific TFR/ TCR Curves may be added via the EScribe suite.
160 x 80 pixel Color TFT Screen
85% Output Efficiency
Preheat / Boost Functionality
Reverse Polarity Protection
Low Resistance Protection
Short Circuit Protection
Overheat Protection
Low Voltage Protection
Integrated USB Connector – Firmware Upgrades / 1A Charging Current
